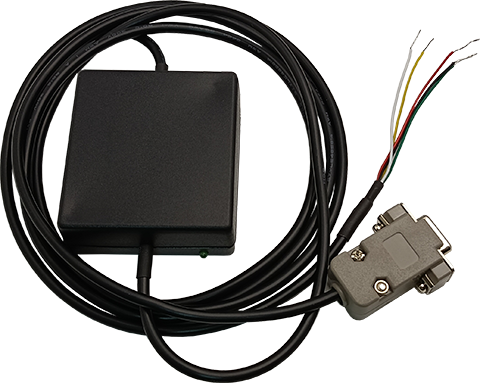

Weight scale data converter Modbus RTU module
อุปกรณ์แปลงข้อมูลค่าน้ำหนักเครื่องชั่งจากพอร์ต RS232 เป็นสัญญาณ RS485 สื่อสารด้วยโปรโตคอลมาตรฐาน Modbus RTU
| Product | IFU-1124-MB1 Series | |
|---|---|---|
| Description | Weight scale data converter Modbus RTU module | |
| Order specify |
|
|
รายละเอียดสินค้า
| Items | Detail | |
|---|---|---|
| Function | Weight scale data converter Modbus RTU module | |
| Interface | RS232 : Weight scale data (input) RS485 : Modbus RTU |
|
| Baud rate | 4800, 9600 (default), 19200, 38400, 57600, 115200 bps | |
| Data bit | 8 bits | |
| Parity bit | Non parity | |
| Stop bit | 1 stop bit | |
| Dimensions | 60 x 65 x 25 (mm) | |

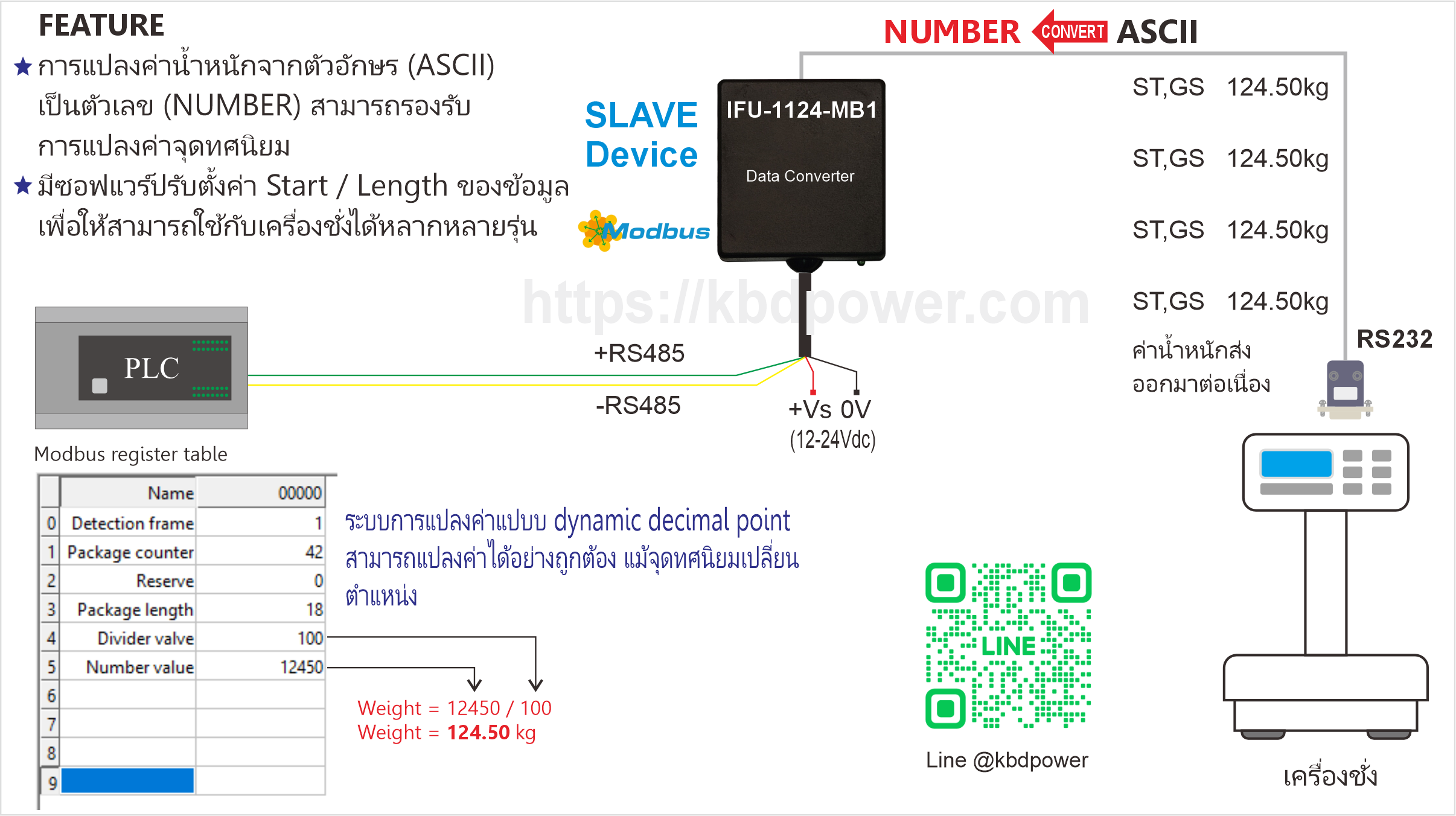

ตัวอย่างการประยุกต์ใช้งาน
VDO ทดสอบการใช้งาน

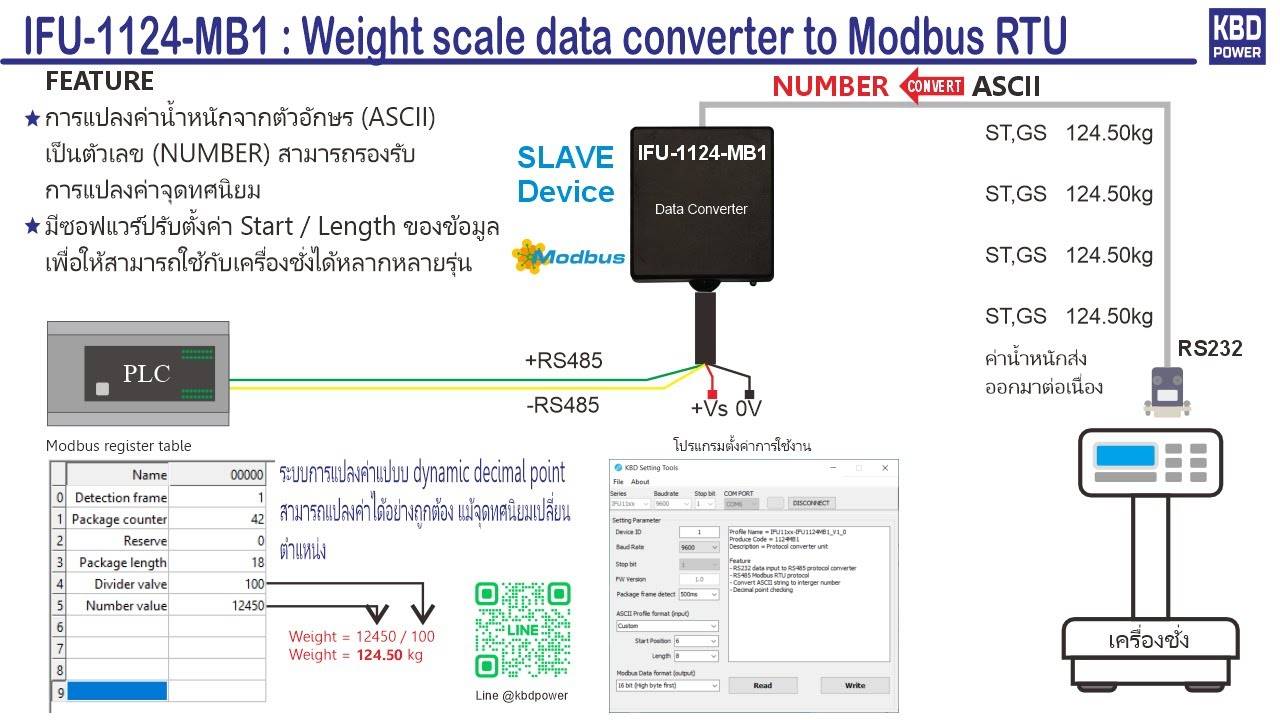

1.IFU 1124 MB1 : แปลงข้อมูลค่าน้ำหนักเครื่องชั่งให้เป็นพอร์ต RS485 สื่อสารด้วยโปรโตคอล Modbus RTU

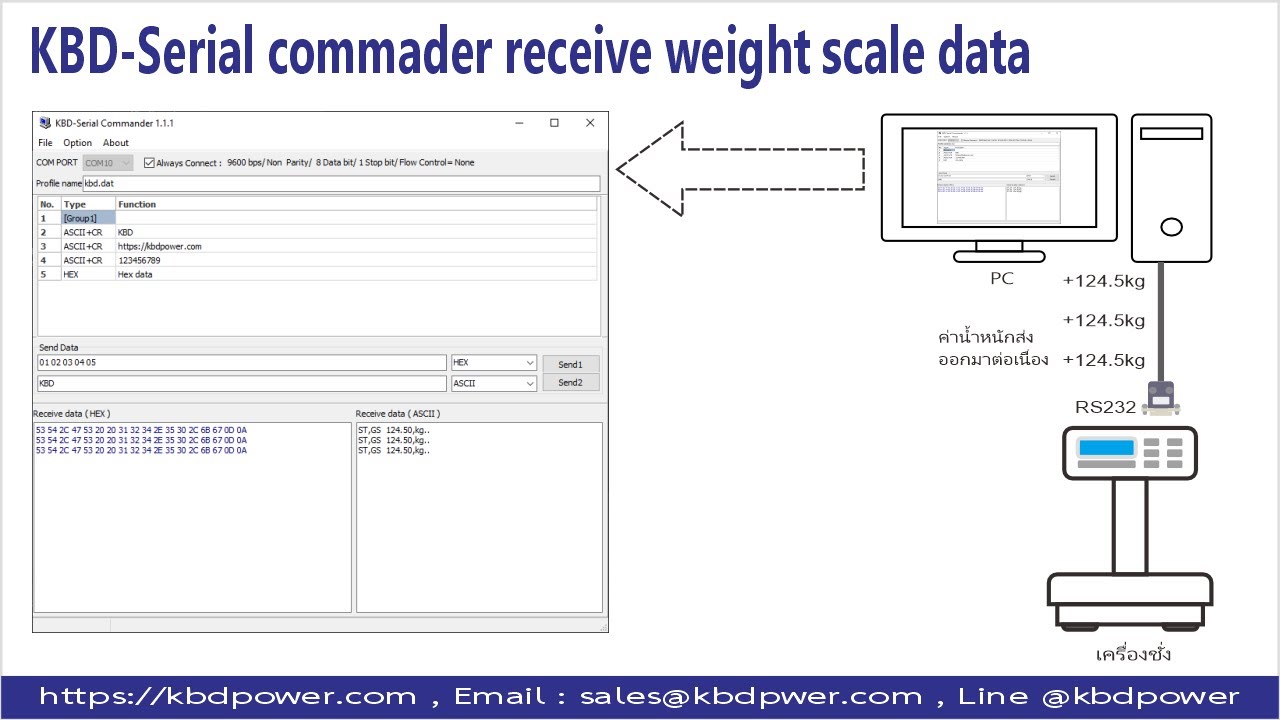

2.การใช้งานโปรแกรม KBD Serial commander รับข้อมูลจากเครื่องชั่ง
