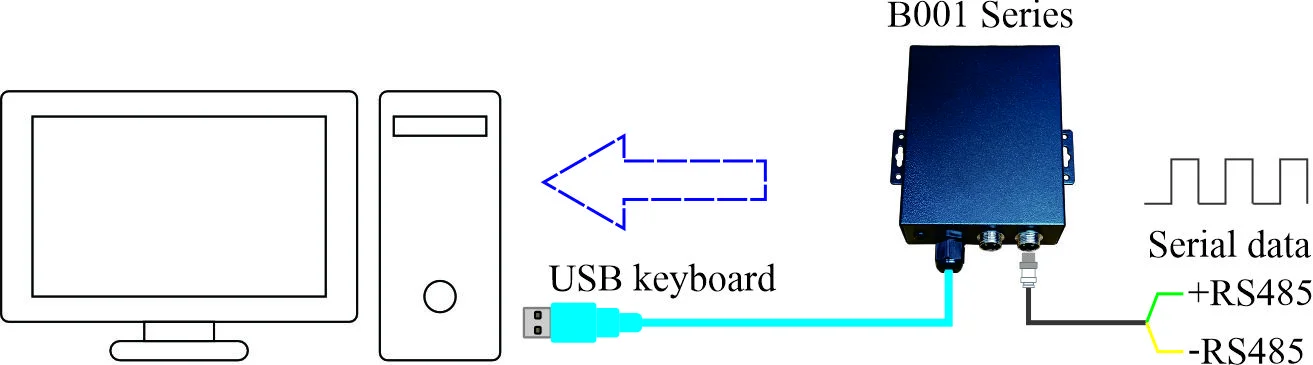

B001 : อุปกรณ์แปลงสัญญาณพอร์ต RS485 เป็น USB Keyboard

ชุดอุปกรณ์แปลงข้อมูลจากพอร์ต RS-485 เข้าสู่คอมพิวเตอร์ในรูป แบบ USB Keyboard แทนการกดป้อนค่าข้อมูลจากคน ให้ค่าข้อมูลที่ถูกต้อง ลดปัญหาการป้อนข้อมูลผิดพลาด ประยุกต์ใช้งานร่วมกับอุปกรณ์ควบคุมในงานอุตสาหกรรมได้ง่าย เช่น PLC โดยรับค่าข้อมูลผ่านพอร์ตสื่อสาร RS-485 ตามรูปแบบ ASCII mode หรือ Scan key mode (Hex code) แล้วส่งข้อมูลเข้าสู่คอมพิวเตอร์ เสมือนการป้อนข้อมูล ด้วยคีย์บอร์ดปกติ

Responsive image
Product B001 Series
Description อุปกรณ์แปลงสัญญาณพอร์ต RS485 เป็น USB Keyboard
Serial interface port RS485 interface
รายละเอียดสินค้า
Items Detail
Function อุปกรณ์แปลงสัญญาณพอร์ต RS485 เป็น USB Keyboard
USB Port ทำงานเสมือนเป็นอุปกรณ์ USB Keyboard สามารถใช้งานได้ทันที ไม่ต้องติดตั้ง driver
Serial interface RS485
Operation mode
  • ASCII mode (Only character code)
  • Scan key mode (Full key)
  • Baud rate 4800, 9600, 19200, 38400, 57600, 115200 bps
    Data bit 8 bits
    Parity bit Non parity
    Stop bit 1 stop bit
    Supply voltage Direct from USB port (5V)
    Sample : Send data from PLC to PC

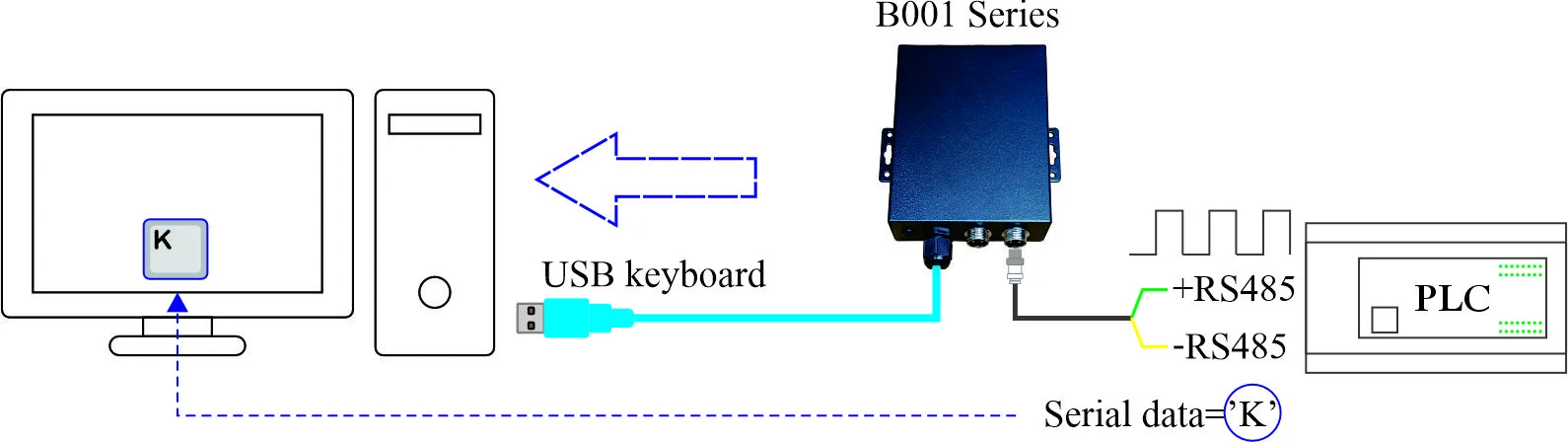

    B001 connect with PLC
    VDO ทดสอบการใช้งาน

    1. B001 Series การทำงานในโหมด 20 : Command code (High byte first)
